HUMIDITY
TEMPERATURE |
|
|
|

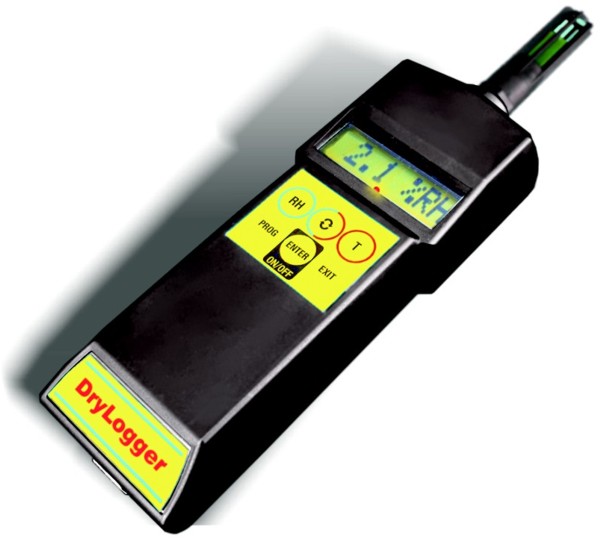

DRYLOGGER
Precision Temperature/Humidity meter. It is also a
datalogger used to collect environmental data of humidity
and temperature and to transfer them to a Windows PC. The

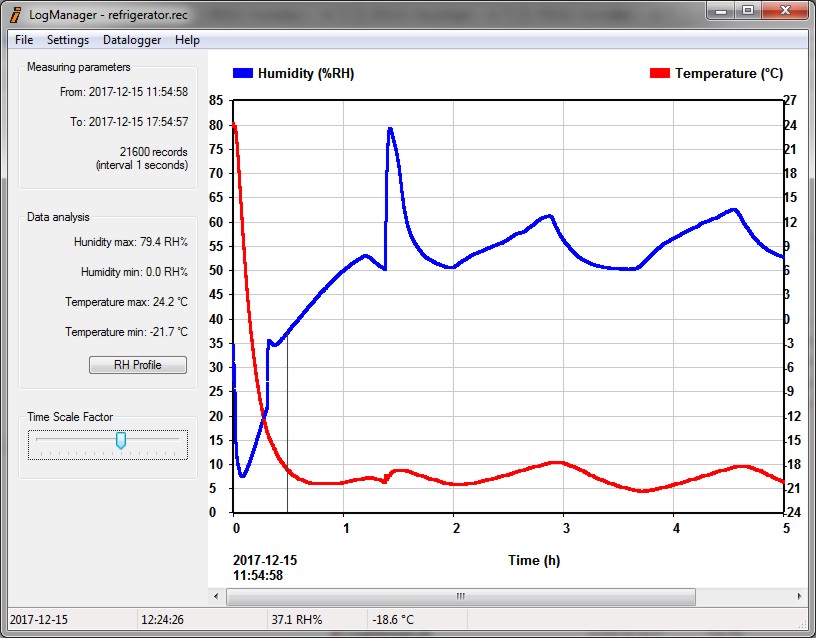

LogManager software,
working on Windows PC, used for downloading, displaying,
analyzing and reporting your collected humidity and
temperature data is included.
It is possible to set an alarm that become active when,
after a certain period of time, humidity or temperature
are above a predetermined maximum threshold.
When the alarm is activated the red LED under the display
flashes.
Humidity: 1 to 95%RH
Resolution: 0.1%RH
Accuracy: ±2%RH
Temperature: -20°C to +60°C
Resolution: 0.1°C
Accuracy: ±0..5°C
Humidity Alarm: from 1 to
95%
Temperature
Alarm: from 0 to 60°C
Alarm
activation delay: from 1 to 99 minutes
Memory:
21600 samples
Sampling rates: can be set at
1, 5, 10, 15, 30 seconds and 1, 5, 10, 15, 30 minutes
LCD Display: 48x11mm
Interface: RS232 e USB
Size: 184x67x44mm
An individual serial numbered
ISO9000 traceable certified is supplied
9265.302 DryLogger,

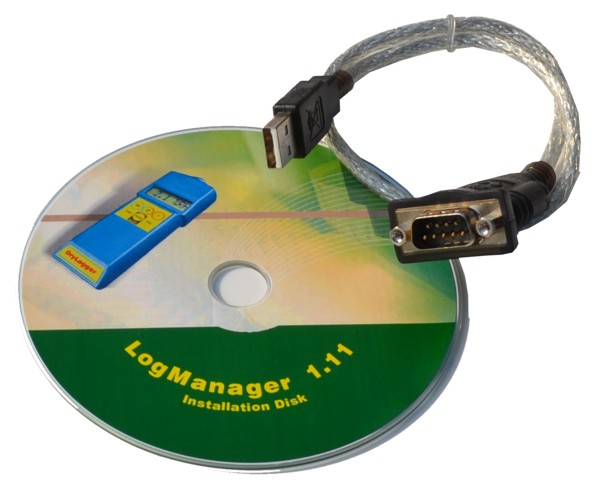

Humidity/Temperature hand LCD datalogger. USB cable and
LogManager software to collect data to Windows PC are
included.
CK-005
ISO9000 Traceable certificate |
|
|

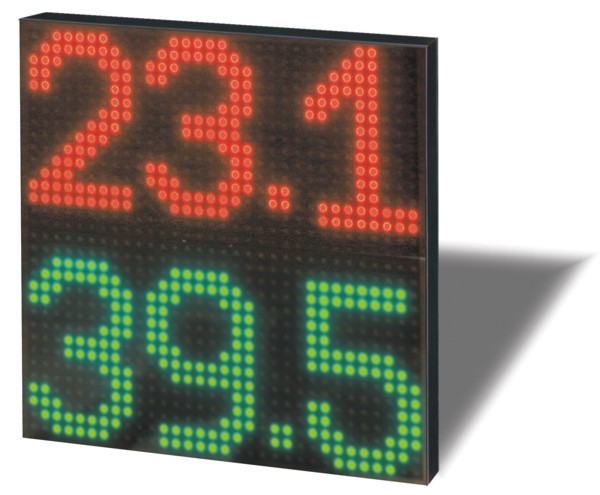

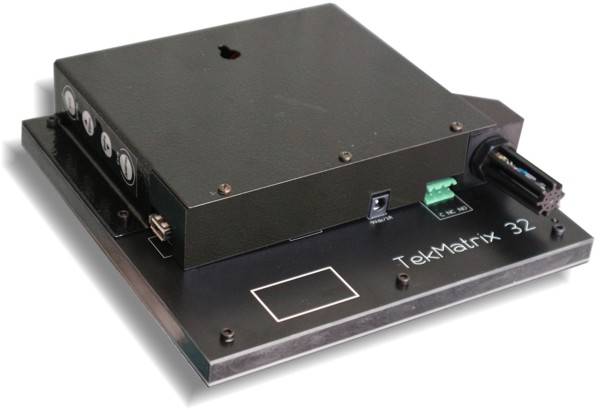

TEKMATRIX 32 humidity/temperature monitoring & alarming & datalogging
It monitors simultaneously humidity, temperature on his large
display, and alerts the engineers to check and repair the facilities
immediately when the settable HIGH or LOW limits of RH/T are exceeded.
When the alarm is active, its output relay can activate an emergency
circuitry.
The internal datalogger samples the environmental data of humidity
and temperature that can subsequently be transferred to a Windows

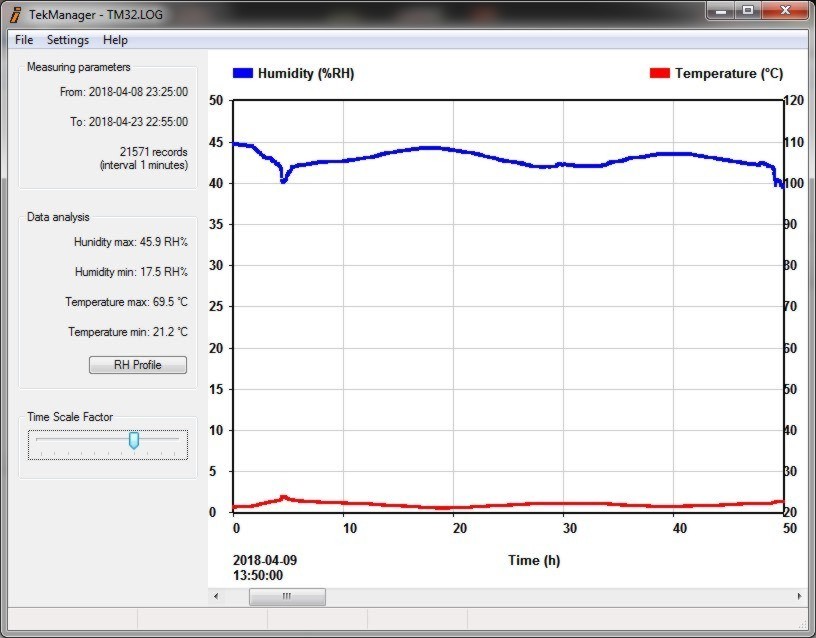

PC via USB or Ethernet interface (the “TekManager” software is
included).
The instrument sensor can be hooked to the display or positioned
externally.
Can be set to fixed display of RH/T or alternate it with date and time.
Humidity: 1 to 95%RH
Resolution: 0.1%RH
Accuracy: ±2%RH
Temperature: -20°C to +60°C
Resolution: 0.1°C
Accuracy: ±0,5°C
Led display: 190x190mm
Memory:
64Kbyte (21600 couples of RH & T)
Sampling rates: can be set at
1, 5, 10, 15, 30 minutes
Interface: USB or Ethernet
Dimensions: 190x190x49mm
An individual serial numbered
ISO9000 traceable certified is supplied
8105.103U Humidity/Temperature
Monitoring&Alarming&Datalogging, USB interface
8105.103E Humidity/Temperature
Monitoring&Alarming&Datalogging, Ethernet interface
CK-013 ISO9000 Traceable certificate
|
|
|
