EXTERNAL SENSORS FOR PANEL TACHOMETERS

Italiano English

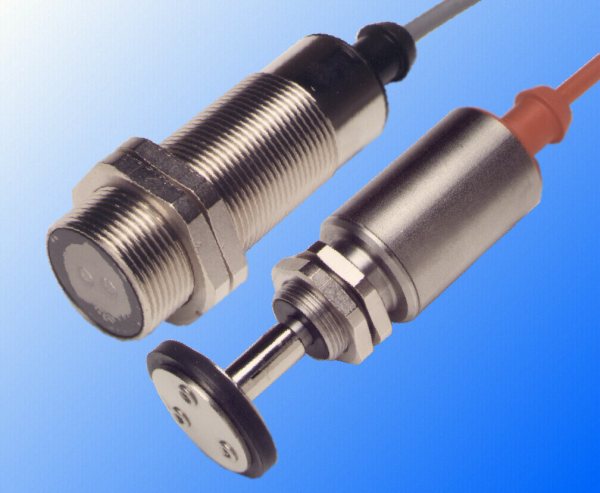

8209.002 e 8209.004 - Optical sensors
Modulated infrared ray system optical detector.
A strip of reflective paper on the rotating part is needed to get the r.p.m. measurement.
Measuring range: from 2.0 to 100,000 rpm
Operating temperature:
8209.002 from 0 to 45ºC
8209.004 from -20 to 75ºC
Reflection range: from 10 to 300mm
Dimensions: chromed brass casing M27x73mm
Cable length: 3m (standard)
optional up to 30m max
Standard accessories: set of 5 reflective adhesive strips

 8830.002 - Contact sensor
For rotation and linear speed measurement, connect to the rotating part for rotational measurement or apply the calibrated wheel for linear speed.
Measuring range: from 0.2 to 30,000 rpm
from 0.02 to 3,000.0 m/min
Operating temperature: from 0 to 45ºC
Dimensions: chromed brass casing M27x93mm
Cable length: 3m (standard)
optional up to 30m max
Standard accessories: set of 3 hard rubber tips, rubber wheel to measure m/min and feet/min

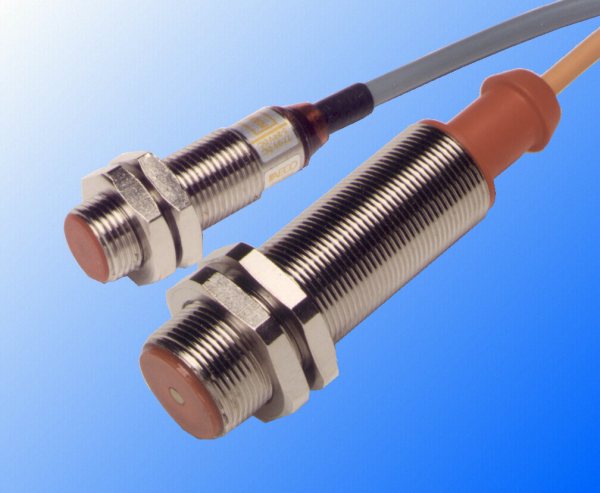

8210.002 - Proximity
Proximity magnetical sensor for rotation speed measurements in dusty environments.
Needs only one reference per round.
Measuring range: from 2.0 to 100,000 rpm
Operating temperature: from 0 to 60ºC
Dimensions: chromed brass casing M12x36mm
Cable length: 3m (standard)
optional up to 10m max
Sensitivity: 2mm (typical 1mm)

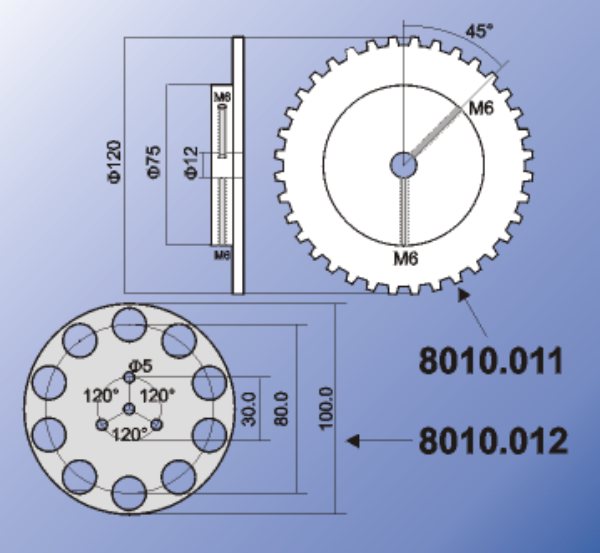

8010.011 - Toothed wheel for Pick-Up
Type: iron toothed wheel, 60 teeth
Dimensions: 120x15mm
Fixing: two 6MA threaded holes

 8010.012 - Punched wheel for proximity
Type: iron punched wheel, 1.2mm width
Dimensions: 100mm
Hole number: 10
Fixing: 3 holes at 120 + 1 central hole
