EXTERNAL SENSORS FOR 5 DIGIT HAND TACHOMETERS

Italiano English

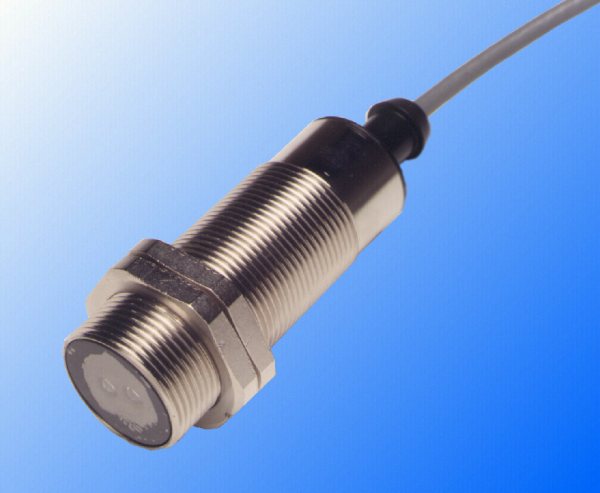

8810.001 and 8810.002 - Optical sensors
Modulated infrared ray system optical detector.
A strip of reflective paper on the rotating part is needed too get the r.p.m. measurement.
Measuring range: from 2.0 a 100,000 rpm
Operating temperature:
8810.001 from 0 to 45ºC
8810.002 from -20 to 75ºC
Reflection range: from 10 to 300mm
Dimensions: chromed brass casing M27x73mm
Cable length: 3m (standard)
optional up to 30m max
Standard accessories: set of 5 reflective adhesive strips

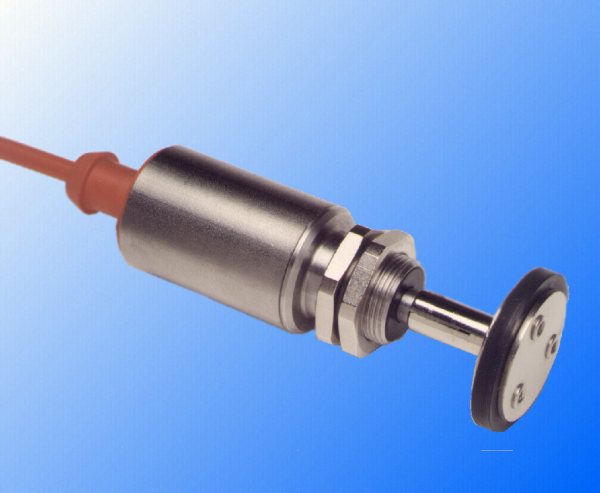

8830.001 - Contact sensor
For rotation and linear speed measurement, connect to the rotating part for rotation measurement or apply the calibrated wheel for linear speed measurements.
Measuring range: from 0.2 to 30,000 rpm
from 0.02 to 3,000.0 rpm
Operating temperature: from 0 to 45ºC
Dimensions: chromed brass casing M27x93mm
Cable length: 3m (standard)
optional up to 30m max
Standard accessories: set of 3 hard rubber tips, rubber wheel to measure m/min and feet/min

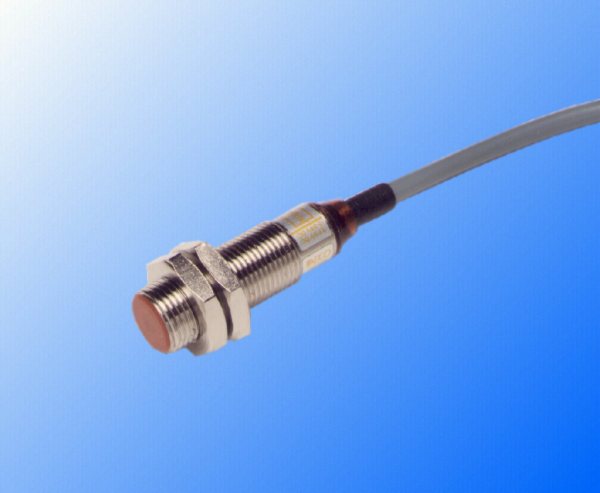

8810.010 - Proximity
Proximity magnetical sensor for rotational speed measurements in dusty environments.
Needs only one reference per round.
Measuring range: from 2.0 to 100,000 rpm
Operating temperature: from 0 to 60ºC
Dimensions: chromed brass casing M12x36mm
Cable length: 3m (standard)
optional up to a 10m max
Sensitivity: 2mm (typical 1mm)
