4 DIGIT OPTICAL HAND TACHOMETER

Italiano English

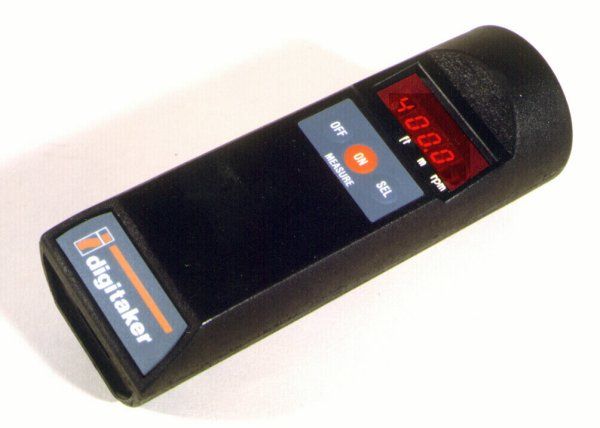

9003.001 - 4 digit optical
Digitaker 9003.001 is a microcomputer based digital tachometer for rotation speed measurements, particularly suitable in application where a physical contact with the moving part cannot be obtained and braking force cannot be applied. Digitaker has a measuring range of 2.0 to 20,000 r.p.m. with automatic decimal point selection in order to ensure a higher degree of reading accuracy.
Technical features
Readout: 4 digit ultrabright Led displays
Accuracy: ±0.1 r.p.m. up to 999,9 r.p.m. - ±0.005% from 1,000 to 20,000 r.p.m.
Power supply: 4 batteries UM3 1.5V
Operating temperature: from 0 a 45ºC
Dimensions: 180x60mm
Weigt: 0.4kg
Measuring range: from 2.0 to 20,000 r.p.m.
Measuring period: Each rotation from 2.0 a 60.0 r.p.m. - 1 second from 60.0 to 20,000 r.p.m.
Standard accessories: plastic case for tachometer and sensors - set of 5 reflective adhesive strips
