5 DIGIT MECHA-OPTO TACHOMETER



  69KB

9803.001 - 5 digit mecha-opto

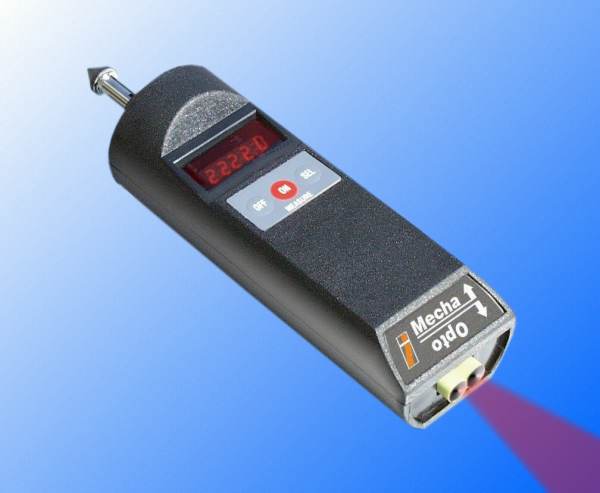

DIGITAKER 9803.001 is a microcomputer based digital tachometer with quartz crystal oscillator to maintain high accuracy. It has a mechanical contact assembly at the top of the unit and an integrated infrared trasmitter and receiver at the base of the unit. The 5-digit LED automatically inverts when switched from contact to optical so that the display is alwasys the right way up when viewed. For optical reading, a reflective adhesive tab is applied on the rotating part
DIGITAKER has a measuring range from 0.2 to 100'000 r.p.m. with automatic decimal point selection in order to ensure the better reading accuracy degree.
TOTALIZING function allows to count the incoming pulses.
A calibrated rubber wheel is provided for linear speed measurement directly in m/min or feet/min.

Technical features
Readout: 5 digit ultrabright Led displays
Accuracy: ±0.1 r.p.m. up to 999,9 r.p.m. - ±0.005% from 1,000 to 100,000 r.p.m.
Power supply: 4 batteries UM3 1.5V
Operating temperature: from 0 to 45ºC
Dimensions: 180x60mm
Weigt: 0.4kg
Measuring range: from 0.2 to 100,000 r.p.m.
Measuring period: 1 second
Standard accessories: plastic case for tachometer and sensors - set of 3 hard rubber tips - rubber wheel for measuring m/min and feet/min - set of 5 reflective adhesive strips

9803.001 5 digit mecha-opto hand tachometer
7608.009 Set of 7 spare rubber tips
7608.010 Spare surface wheel
7817.006 Spare 5 self-adhesive reflecting tabs
