BASIC PANEL TACHOMETERS

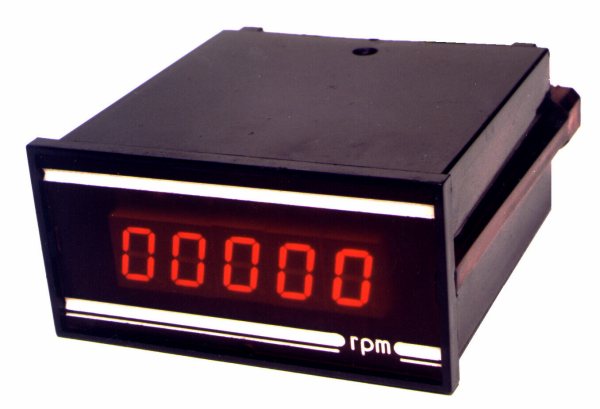

8413 - Digital panel tachometers
The digital panel tachometers series 8413 are panel types and input can be provided through different kinds of transducers in order to meter the r.p.m. of a motor, or any other rotating part and also linear speed measurement.
The main features are the low cost and the high accuracy, and make them suitable in applications where no special features other than accuracy are required.
The tachometers are grouped in two basic families:
8413.040/042/044/046 four digits
8413.050/052/054/056 five digits

8413.040 (230Vac + 12-24Vdc) - 8413.044 (110Vac + 12-24Vdc)
4 digits, from 2.0 to 9,999 rpm, can work with optical detector and proximity (1 pulse per revolution)
8413.042 (230Vac + 12-24Vdc) - 8413.046 (110Vac + 12-24Vdc)
4 digits, from 0.2 to 9,999 rpm, can work with contact detector proximity + 8010.012 (10 pulse per revolution)
8413.050 (230Vac + 12-24Vdc) - 8413.054 (110Vac + 12-24Vdc)
5 digits, from 2.0 to 50,000 rpm, can work with optical detector and proximity (1 pulse per revolution)
8413.052 (230Vac + 12-24Vdc) - 8413.056 (110Vac + 12-24Vdc)
5 digits, from 0.2 to 30,000 rpm, can work with contact detector proximity + 8010.012 (10 pulse per revolution)
Technical features
Display: 4 or 5 digits, 13mm height LED display
Measuring period
: 1 second
Accuracy: ±0.1 rpm up to 999.9 rpm and  ±0.005% up to 1,000 rpm
Operating temperature: from 0 to 45ºC
Power supply: AC 110/220Vac (depending on the model) - DC from 9 to 30Vdc
Weight: 0.33 Kg

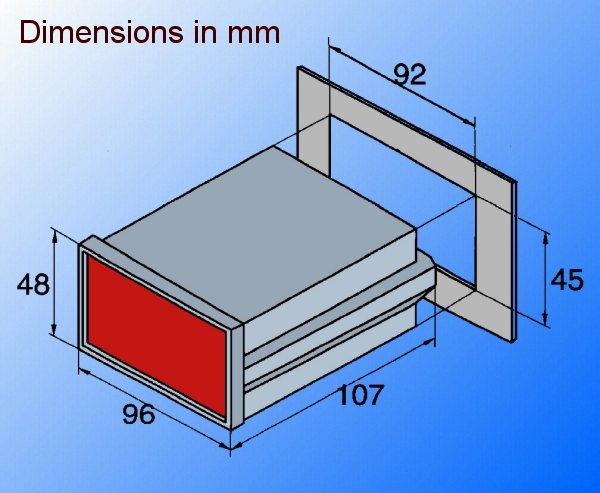

Case: DIN 48x96x107mm
DIMMER control
Decimal: 1 or 0
