4 DIGIT CONTACT HAND TACHOMETER

Italiano English


9004.001 - 4 digit contact

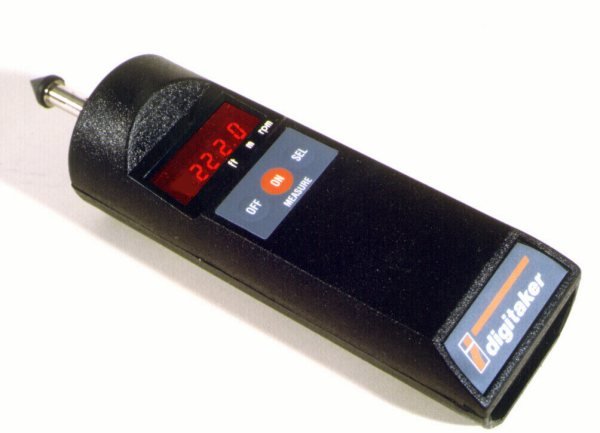

Digitaker 9004.001 is a microcomputer based digital tachometer for rotation and feed speed measurements by means of hard rubber contactor placed on the outlet spindle of the device itself.
Digitaker has a measuring range of 0.2 to 20,000 r.p.m. with automatic decimal point selection in order to ensure the better reading accuracy degree.
A calibrated rubber wheel is provided for linear speed measurements directly in m/min or feet/min.
Technical features
Readout: 4 digit ultrabright Led displays
Accuracy: ±0.1 r.p.m. up to 999.9 r.p.m. - ±0.005% from 1,000 to 20,000 r.p.m.
Power supply: 4 batteries UM3 1.5V
Operating temperature: from 0 a 45ºC
Dimensions: 180x60mm
Weigt: 0.4kg
Measuring range: from 0.2 to 20,000 r.p.m.
Measuring period: 1 second
Standard accessories: plastic case for tachometer and sensors, set of 7 hard rubber tips, rubber wheel for measuring m/min and feet/min
